PalmSens.Core.dll
The PalmSens SDK contains the following libraries and projects:
-
PalmSens.Core.dll & PalmSens.Core.Windows.BLE.dll
These libraries contain the namespaces with all the necessary files for using PalmSens/EmStat/Nexus/Sensit devices in your software.
-
PalmSens: All necessary classes and functions for performing measurements and doing analysis with PalmSens, EmStat, Sensit or Nexus. -
PalmSens.Comm: For Serial, USB, TCP, Bluetooth (Classic/Low Energy) communication with instruments. -
PalmSens.DataFiles: For saving and loading method and data files. -
PalmSens.Devices: For handling communications and device capabilities. -
PalmSens.Techniques: Contains all measurement techniques. -
PalmSens.Units: Contains a collection of units used by these
-

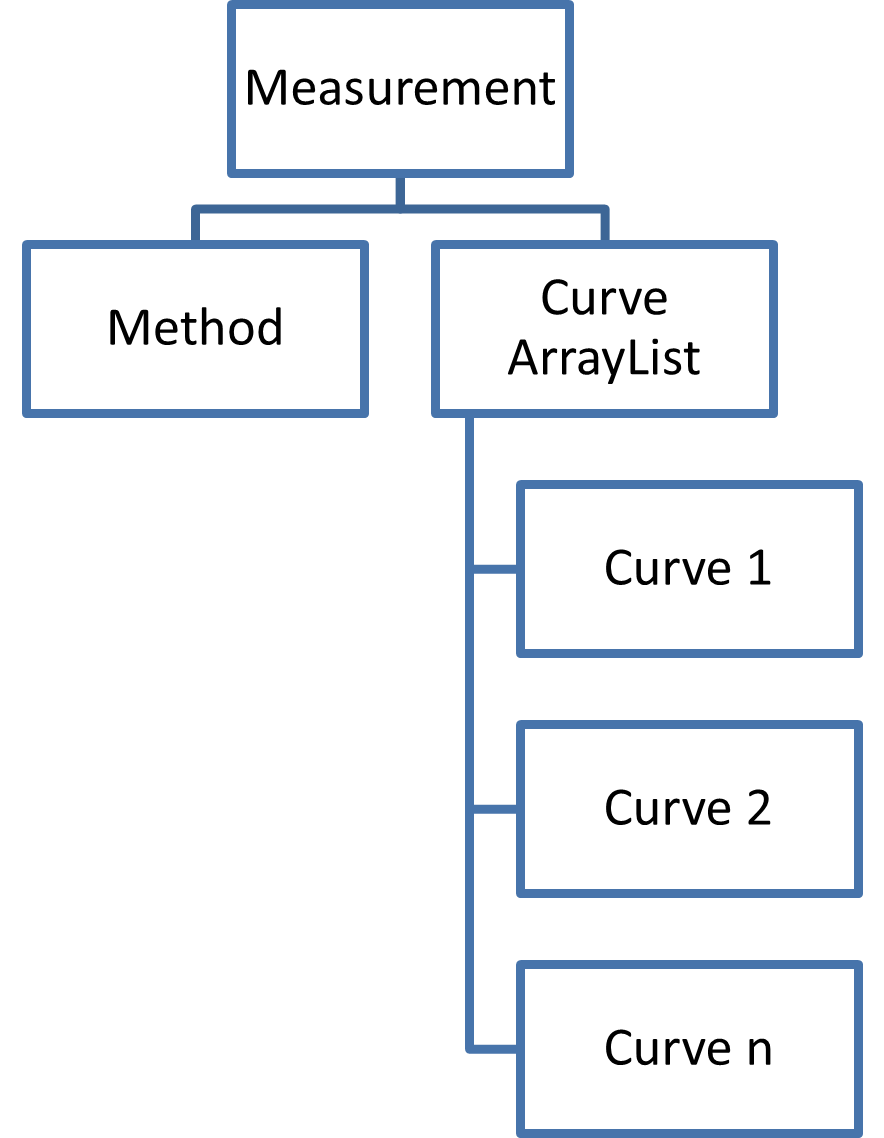

The basis for handling measurements is the PalmSens.Measurement class, or the PalmSens.Core.Simplified.Data.SimpleMeasurement class when using the simplified wrapper.
The measurement class contains all classes, functions, and parameters necessary for performing a measurement with a PalmSens or EmStat instrument. It has one method and can contain multiple curves. Curves are a representation of the data in the measurement used for plotting and analysis.

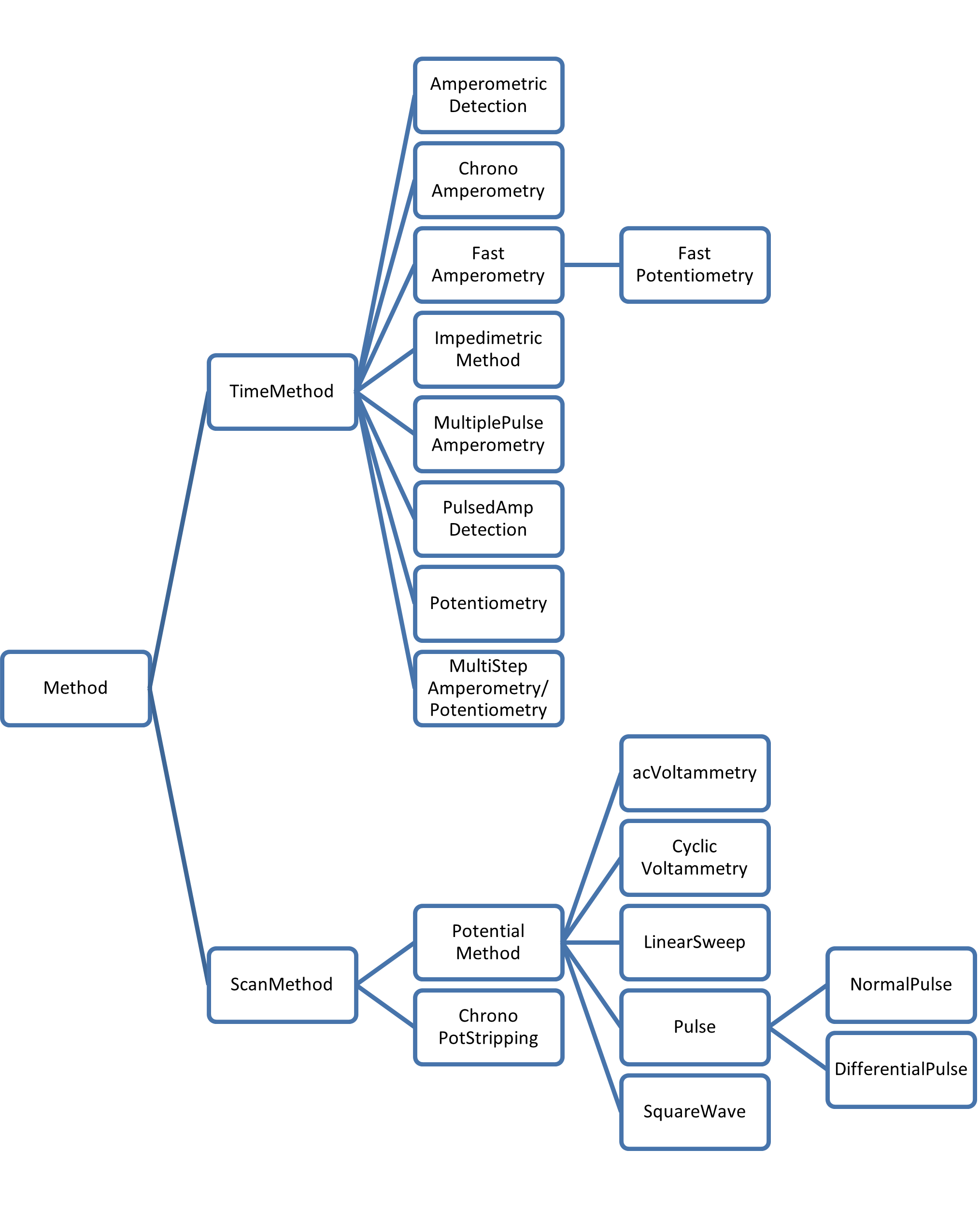

The following diagram shows the inheritance structure of the Method
classes:
