MethodSCRIPT™

The MethodSCRIPT™ scripting language is designed to integrate PalmSens OEM potentiostat (modules) effortlessly in your hardware setup or product.

MethodSCRIPT™ allows developers to program a human-readable script directly into the potentiostat module by means of a serial (TTL) connection. The simple script language allows for running all supported electrochemical techniques and makes it easy to combine different measurements and other tasks.

More script features include:

  • Use of variables

  • (Nested) loops

  • Logging results to an SD card

  • Digital I/O for example for waiting for an external trigger

  • Reading auxiliary values like pH or temperature

  • Going to sleep or hibernate mode

See for more information on MethodSCRIPT™, see palmsens.com/methodscript

Sandbox Measurements

PSTrace includes an option to make use MethodSCRIPT™ Sandbox to write and run scripts. This is a great place to test MethodSCRIPT™ measurements to see what the result would be. That script can then be used in the MethodScriptSandbox technique in the SDK as demonstrated below.

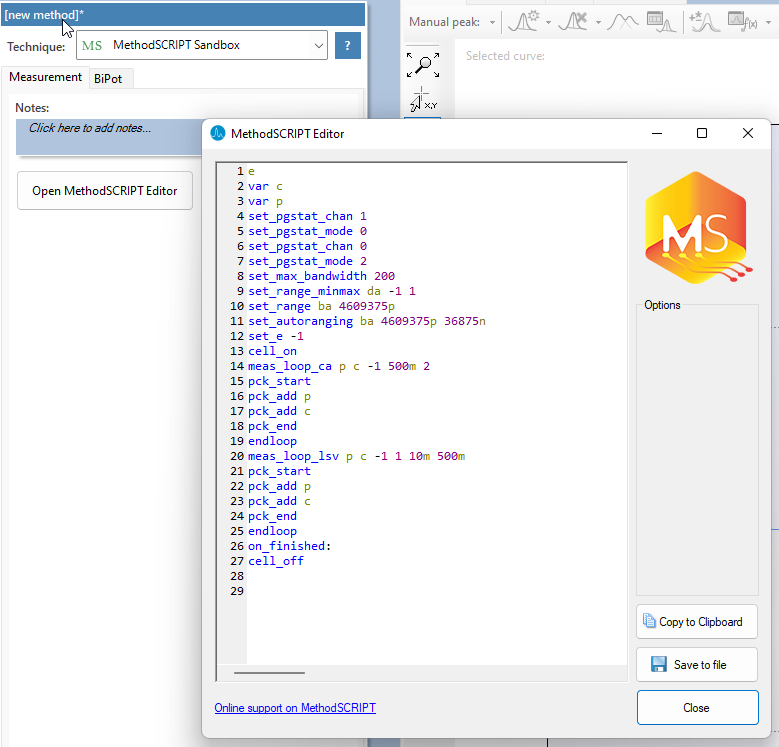

MethodSCRIPT editor in PSTrace

The MethodSCRIPTExample VI demonstrates how to run this measurement on a compatible instrument, i.e. the Sensit, EmStat Pico and EmStat4 series instruments.

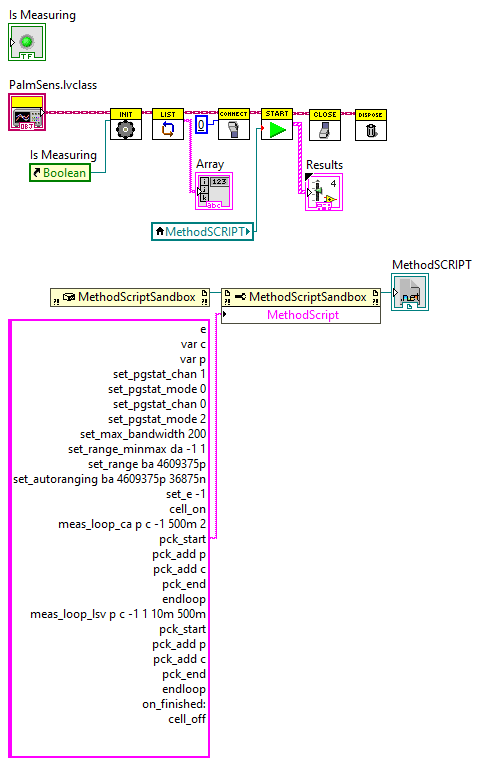

Diagram for the MethodSCRIPT example

SandboxMeasurements parse and store the variables sent in pcks. Sets of x and y values are generated automatically for each meas_loop that defines a pck with two or more variables, scripts with multiple meas_loop will generate sets. The first variable in the pck will be set as the x-axis and a set is created for each subsequent variable in the pck. Please note that to plot data versus time you will need to add a variable with the time to the pck.

In the example above two sets of x and y values will be generated.
